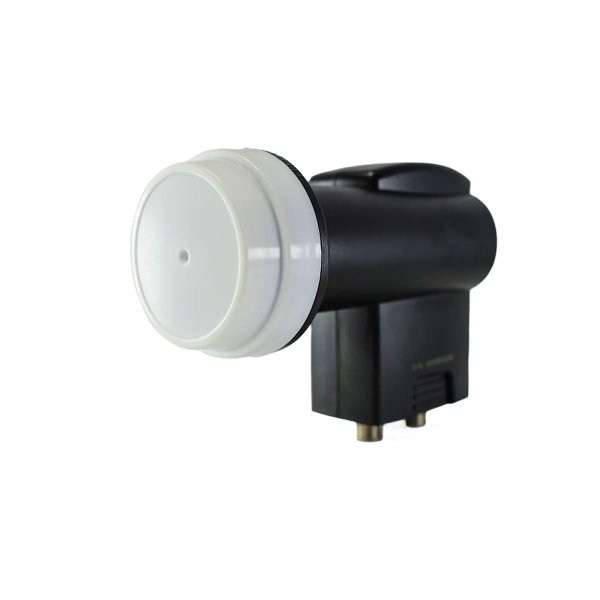

Quad LNB Circular GT-SAT GT-QDCIR40 som använd mest till ryska kanaler som Ntv.
LNB Circular GT-SAT GT-QDCIR40 - (LO10,75 GHz) Quad LNB cirkulär - Speciellt designad för Europa. LNB ger optimerade mottagningsmöjligheter för cirkulär polaritetsmottagning på det övre bandet.
| Input Frequency Range | High Band : 11.7 ~ 12.75 GHz |
| Output Frequency Range | 750 ~ 2,000 MHz |
| L.O. Frequency | 10.75 GHz |
| L.O. Frequency Stability | +/-1 MHz (Max)@ Room Temp. |
| Local Oscillator Frequency Phase Noise | -60dBc/Hz @ 1KHz (Max.) |
| -85dBc/Hz @ 10KHz (Max.) |
| -105dBc/Hz @ 100KHz (Max.) |
| Conversion Gain | 56 ~ 60 dB |
| Gain Flatness 26MHz Bandwidth | +/-0.5dB (Typ.) |
| Operating Voltage | RHCP 11.0 ~ 14.0 Vdc |
| LHCP 16.0 ~ 20.0 Vdc |
| Cross-Pol. Isolation | 25 dB (Typ.) |
| Image Rejection | 40 dB (Min.) |
| Current Consumption | 190 mA (Typ.) |
| Output Connector Type | 75 Ohm F-Female |
| Output Spurious | <-60dBm |
