The SIGNAL WS-6990 is a professional HDMI to DVB-T/C digital modulator designed to convert HDMI video sources into a standard digital TV channel distributed over coaxial cable networks.

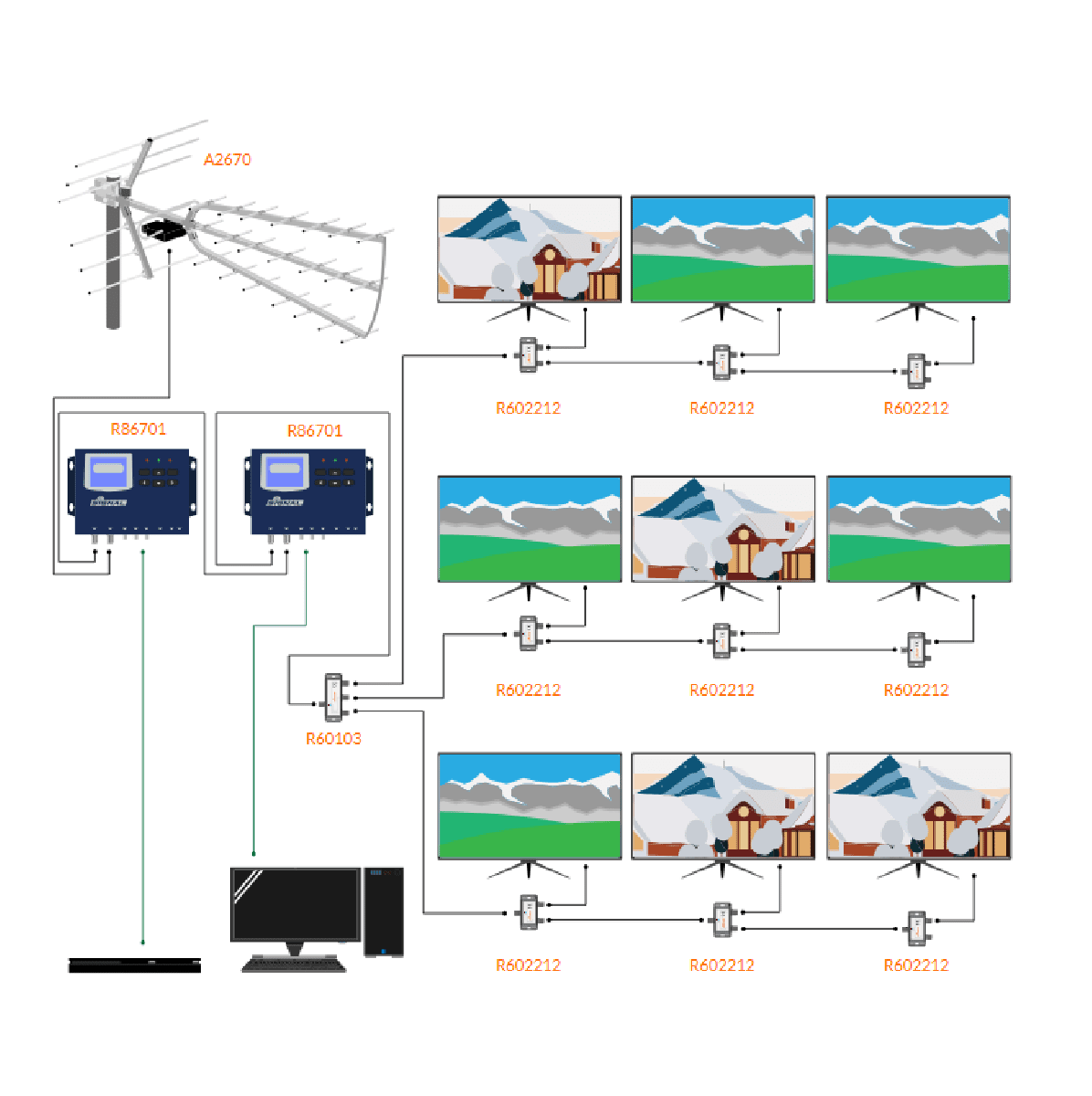

Ideal for hotels, restaurants, sports bars, schools, hospitals, office buildings and SMATV systems, the unit allows HDMI sources such as IPTV boxes, satellite receivers, media players, computers and Blu-ray players to be distributed to multiple televisions simultaneously.
The modulator supports Full HD 1080p resolution and efficient H.264 video encoding for excellent image quality and bandwidth optimization. Adjustable bitrate from 1 to 20 Mbps allows the installer to optimize the output stream according to network requirements.

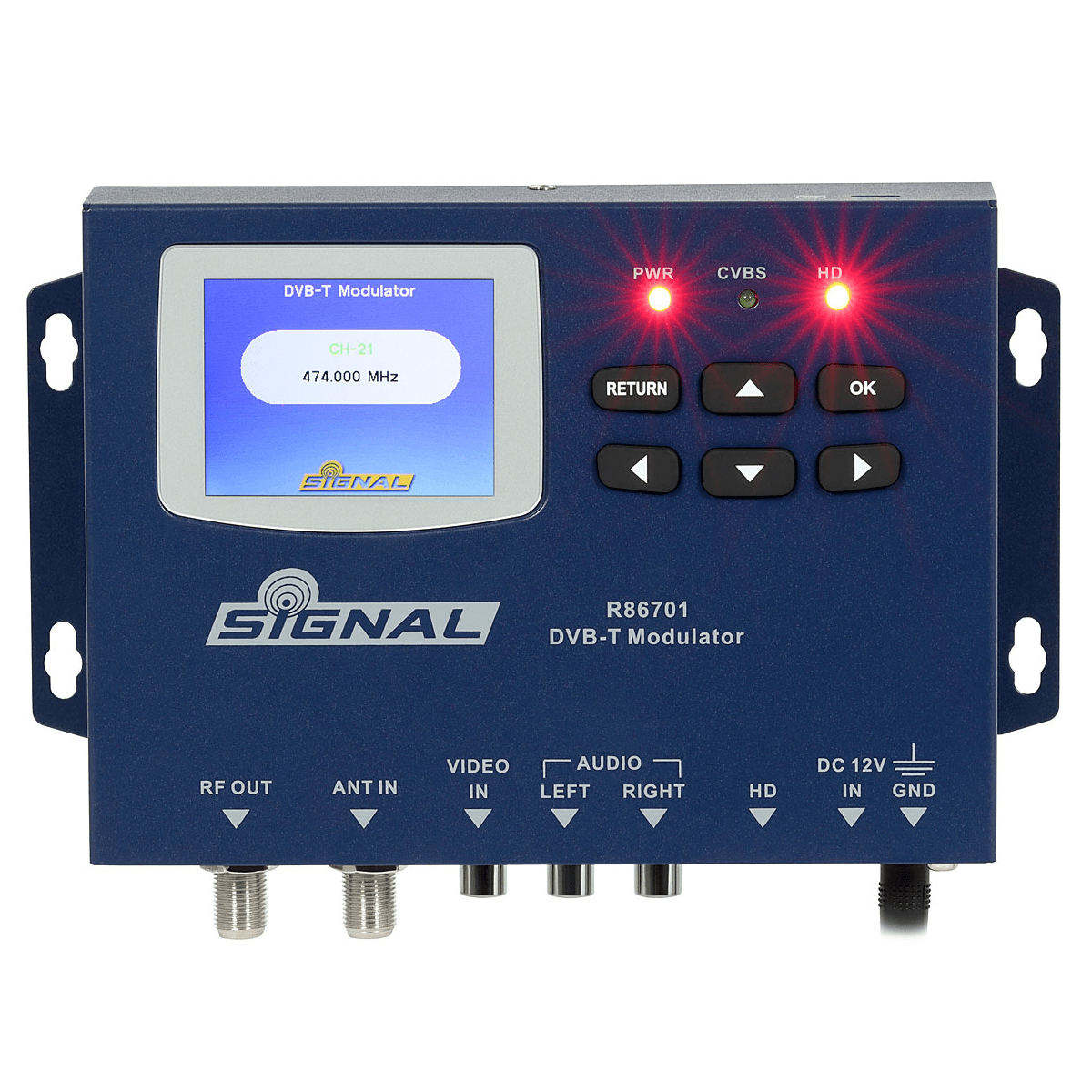

Configuration is performed directly from the built-in LCD display and front-panel control buttons.
⭐ Advantages
✓ Converts HDMI signals into DVB-T or DVB-C channels
✓ Full HD 1080p video quality
✓ Adjustable bitrate from 1–20 Mbps
✓ H.264 video compression
✓ Easy installation and setup
✓ Built-in LCD display
✓ Ideal for hotels, commercial and residential installations
✓ Distribute HDMI content through existing coax networks
✓ RF loop-through input for combining signals
✓ Professional SMATV distribution solution
⚙ Technical Specifications
Model: SIGNAL WS-6990
Product Type: Digital HDMI Modulator
Output Standards: DVB-T / DVB-C
Video Encoding: H.264
Resolution: Full HD 1080p
Bitrate: Auto or manually adjustable 1–20 Mbps
Channels: Single channel

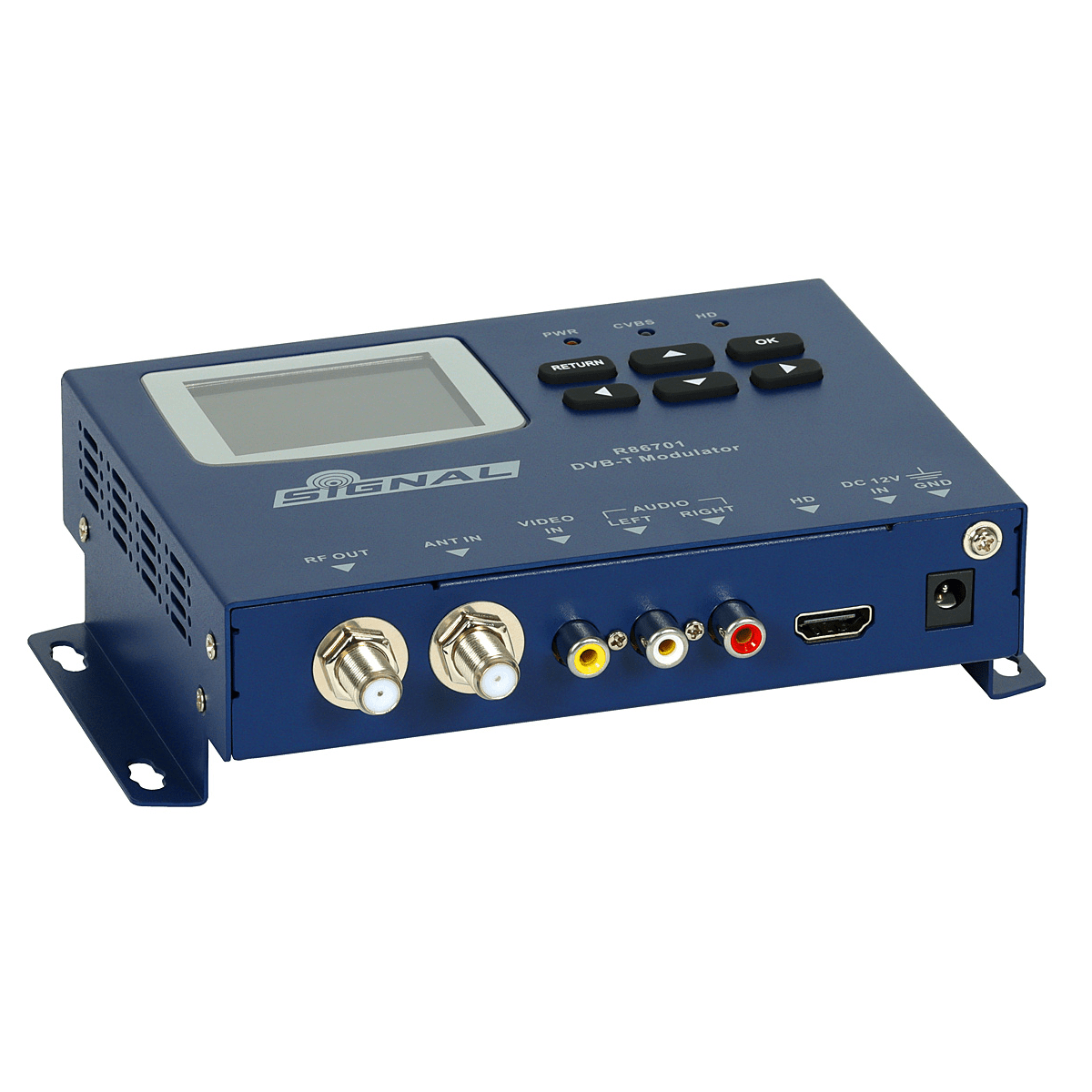

HDMI Input: 1
CVBS/RCA Input: 1
RF Input: 1
RF Output: 1
RF Frequency Range: 50–860 MHz
RF Output Level: 70–100 dBμV
DVB-T Modulation: COFDM
DVB-C Modulation: QAM
MER: ≥35 dB
Power Supply: 12V DC / 1.5A
Configuration: LCD display and buttons
Dimensions: 155 × 114 × 33 mm
Weight: 0.36 kg
Operating Temperature: 0°C to +45°C

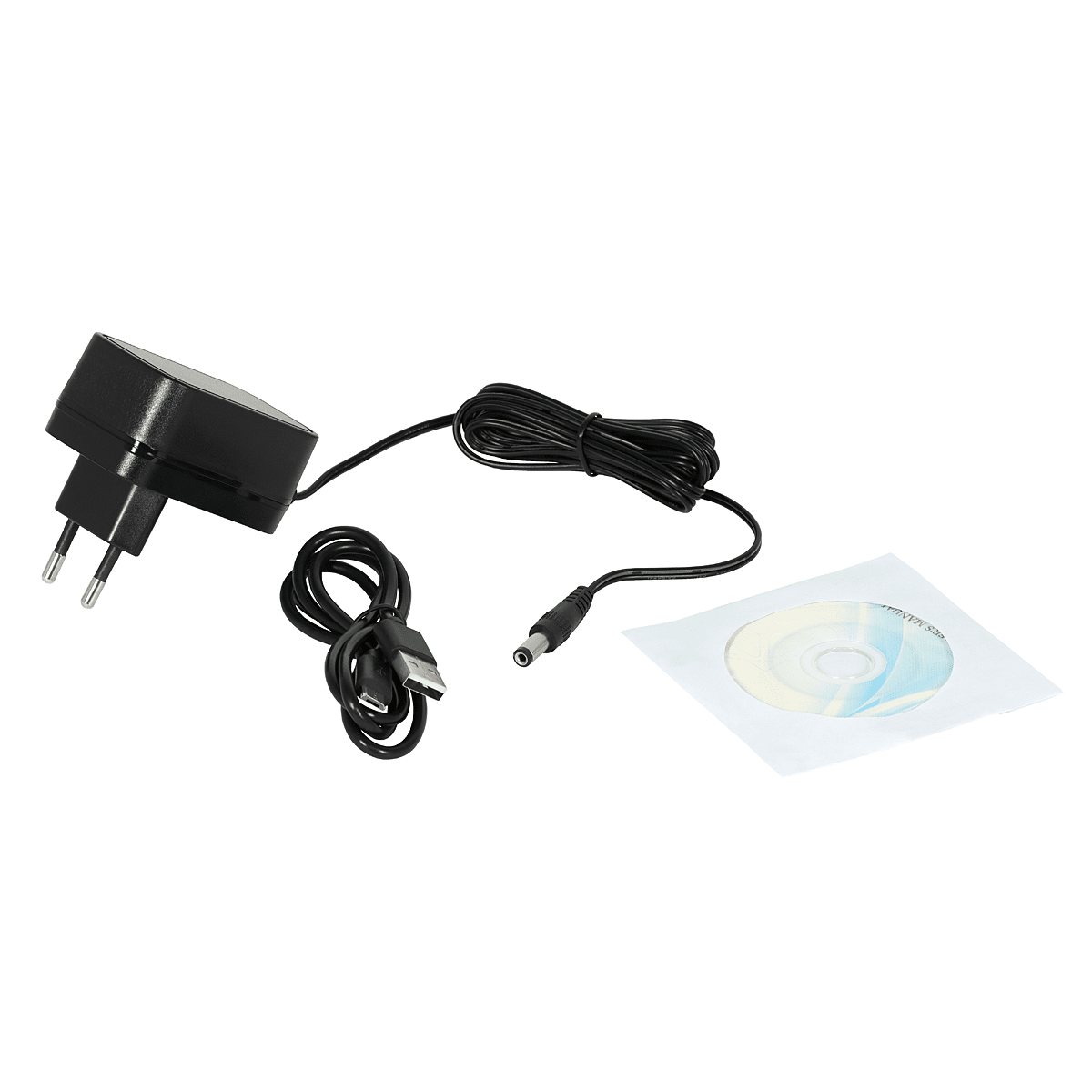

📦 Package Contents
- SIGNAL WS-6990 HDMI to DVB-T/C Modulator
- 12V Power Adapter
- User Manual
