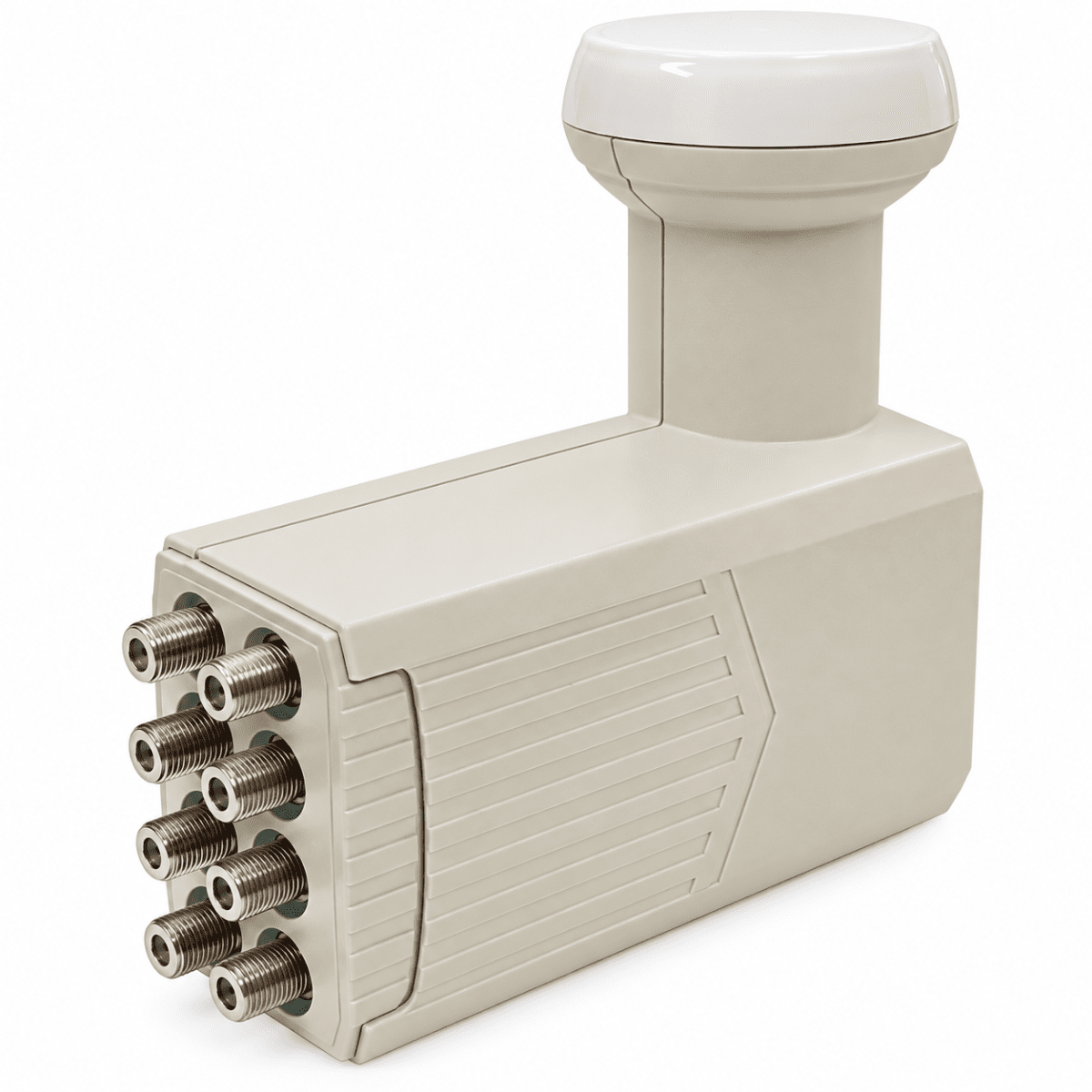

The Maximum Pro-Line P-8 Octo LNB is a cost-effective Universal LNB featuring eight independent outputs. It allows up to eight satellite receivers or tuners to be connected directly to one satellite dish without requiring a separate multiswitch.
Each output operates independently, allowing the connected receiver to select the low or high frequency band and vertical or horizontal polarisation. The model is therefore suitable for homes, multi-TV systems and larger multiroom installations.
With a noise figure of 0.2 dB and conversion gain of 50–65 dB, the P-8 provides stable performance for conventional digital satellite installations. It is designed to operate in temperatures ranging from −30 to +60°C.
The Maximum Pro-Line P-8 is an economical choice for installations requiring multiple directly connected receivers at a competitive price.
✅ Product Benefits
- Eight separate and independent outputs
- Supports up to eight receivers or tuners
- Direct connection without a separate multiswitch
- Cost-effective solution for larger satellite installations
- Noise figure of 0.2 dB
- Conversion gain of 50–65 dB
- Automatic band and polarisation switching
- Universal Ku-band LNB
- Suitable for larger multi-TV and multiroom installations
- Operating temperature from −30 to +60°C
- Output impedance of 75 Ω
🎯 Ideal For
- Homes with multiple televisions
- Up to eight satellite receivers or tuners
- Larger multiroom installations
- Televisions with integrated satellite tuners
- Satellite receivers equipped with Twin Tuners
- Up to four Twin Tuner receivers
- Digital satellite television
- Installations that do not require an external multiswitch
- Customers looking for a cost-effective Octo LNB
🔧 Use and Connection
The LNB is installed on the satellite dish and carefully adjusted to achieve the best possible signal strength and quality.
Each receiver or tuner must be connected to its own LNB output using a separate coaxial cable. All eight outputs operate independently and can be used simultaneously.
A Twin Tuner receiver requires two separate cables from the LNB for full functionality. Four Twin Tuner receivers can therefore use all eight available outputs.
Low- and high-band selection is controlled automatically using 0/22 kHz, while vertical and horizontal polarisation are selected through the receiver’s output voltage.
⚙️ Technical Specifications
Product type: Universal Octo LNB
Manufacturer: Maximum
Model: Pro-Line P-8
Number of outputs: 8
Directly connected receivers/tuners: Up to 8
Low-band input frequency: 10.70–11.70 GHz
High-band input frequency: 11.70–12.75 GHz
Low-band output frequency: 950–1950 MHz
High-band output frequency: 1100–2150 MHz
Low-band local oscillator frequency: 9.75 GHz
High-band local oscillator frequency: 10.60 GHz
Noise figure: 0.2 dB
Initial LO accuracy: ±1.0 MHz
LO phase noise at 1 kHz: −50 dBc/Hz
LO phase noise at 10 kHz: −75 dBc/Hz
LO phase noise at 100 kHz: −95 dBc/Hz
Vertical control voltage: 11.0–14.5 V
Horizontal control voltage: 16.0–20.0 V
Band switching: 22 kHz ±4 kHz
Conversion gain: 50–65 dB
Gain variation: ±0.75 dB over 36 MHz
Image rejection: 40 dB minimum
1 dB compression point: 0 dBm minimum
Crosstalk isolation: 18 dB minimum
Output impedance: 75 Ω
VSWR: 2.5:1
Radiated interference: −45 dB
Spurious output: −60 dBc maximum
Power supply: 10–20 V DC
Power consumption: Approximately 210 mA
Operating temperature: −30 to +60°C
Weight: 350 g
📦 Package Contents
- 1 × Maximum Pro-Line P-8 Octo LNB with eight outputs
