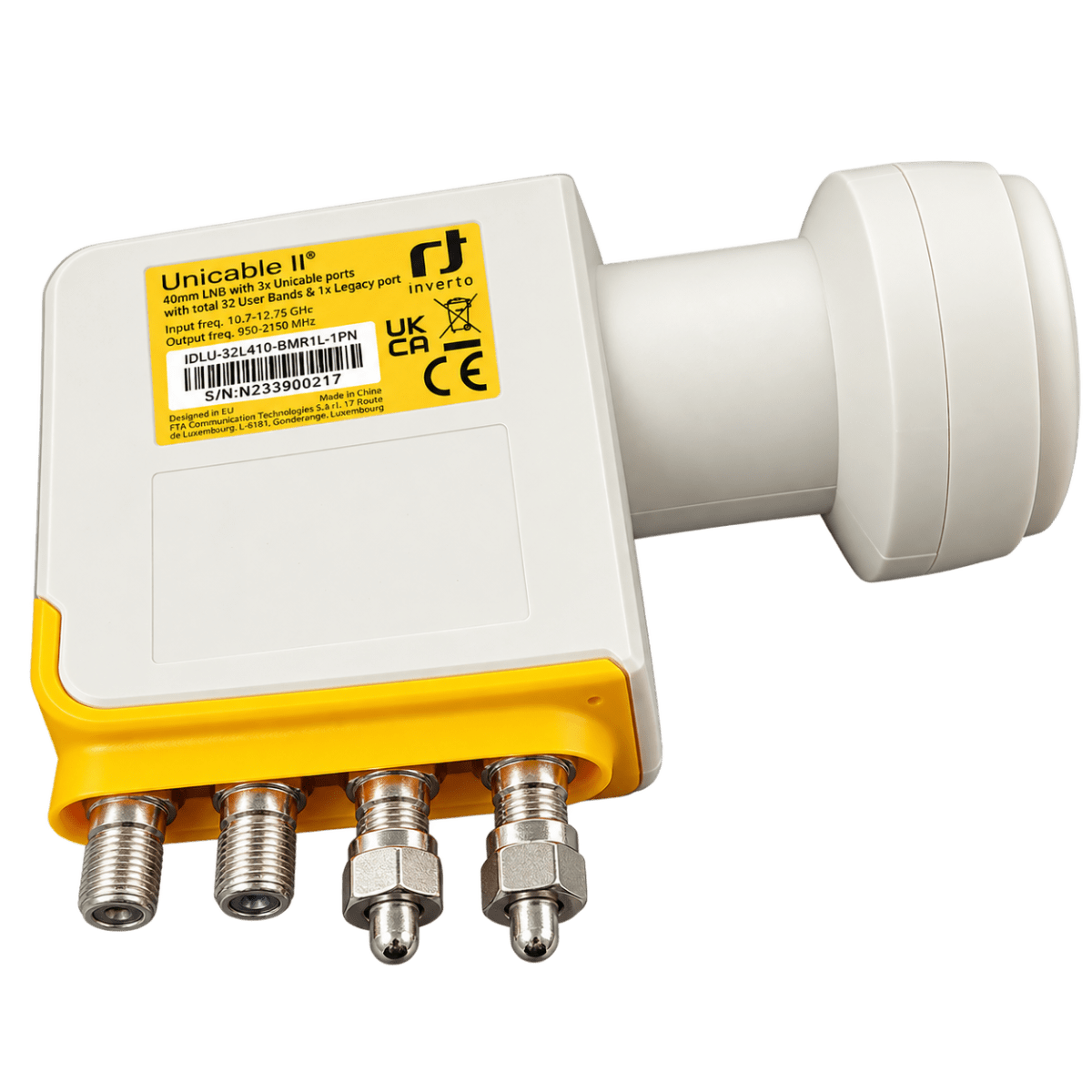

The Inverto Unicable II IDLU-32L410-BMR1L-1PN is an advanced dCSS LNB for larger satellite and multiroom installations. It provides 32 preconfigured user bands for compatible Unicable receivers and one separate Legacy output for a conventional satellite receiver or tuner.
The 32 user bands can be distributed through the LNB’s three SCR/dCSS outputs and support both EN50494 (Unicable I/SCR) and EN50607 (Unicable II/JESS). This allows numerous tuners to operate through an efficient coaxial network without requiring a separate cable from the dish to every tuner.
A conventional Legacy output is also provided and operates like an output on a standard Universal LNB. The total system capacity is therefore up to 32 Unicable tuners and 1 Legacy tuner.
✅ Product Benefits
- 32 preconfigured user bands
- One separate Universal Legacy output
- Supports up to 33 compatible tuners in total
- Three SCR/dCSS outputs for flexible cabling
- Supports EN50494 and EN50607
- Suitable for modern FBC and multi-tuner receivers
- Efficient solution for larger multiroom systems
- Universal Ku-band reception
- Extendable weather protection for the F-connectors
- Operating temperature from −30 to +70°C
- Standard 40 mm mounting neck
- Typical noise figure of 0.1 dB
🎯 Ideal For
- Larger houses and multi-TV installations
- Satellite multiroom systems
- FBC tuners and recording receivers
- Receivers supporting EN50494
- Receivers supporting EN50607/JESS
- Installations with a limited number of coaxial cables
- Up to 32 compatible Unicable tuners
- One additional conventional receiver through the Legacy output
- Professional and expandable satellite systems
🔧 Installation and Configuration

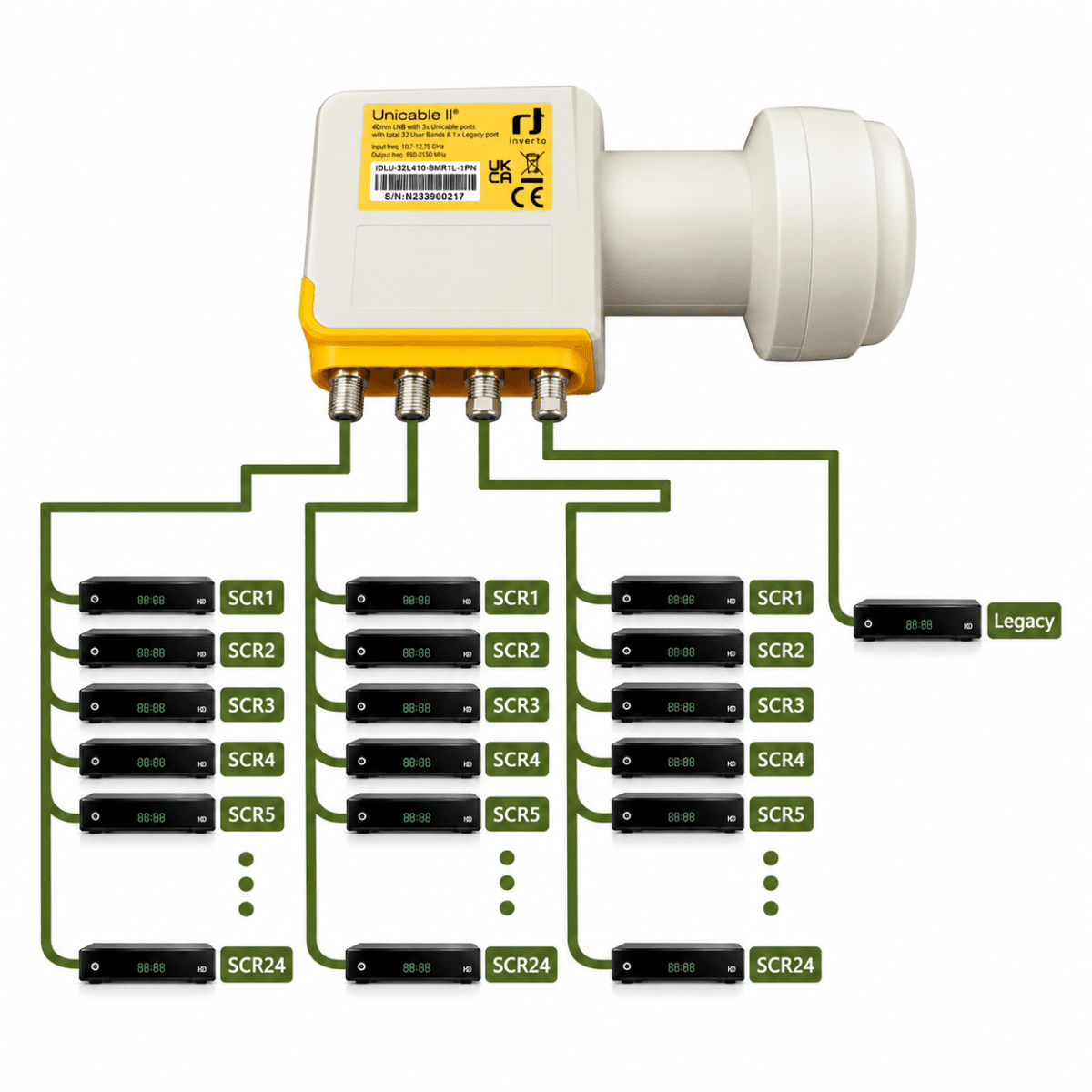

The three SCR/dCSS outputs can feed one or more coaxial networks through compatible satellite splitters. All three outputs share the same set of 32 user bands. Every tuner must therefore be assigned a unique user band and corresponding frequency across the entire installation.
User bands 1–8 can be used by compatible EN50494 or EN50607 equipment. User bands 9–32 require a receiver or tuner supporting EN50607.
The Legacy output connects directly to a conventional satellite receiver or tuner and is controlled by 13/18 V and 0/22 kHz. This output operates separately from the 32 Unicable user bands.
📡 User Bands and Frequencies
UB1: 1210 MHz – EN50494 and EN50607
UB2: 1420 MHz – EN50494 and EN50607
UB3: 1680 MHz – EN50494 and EN50607
UB4: 2040 MHz – EN50494 and EN50607
UB5: 984 MHz – EN50494 and EN50607
UB6: 1020 MHz – EN50494 and EN50607
UB7: 1056 MHz – EN50494 and EN50607
UB8: 1092 MHz – EN50494 and EN50607
UB9: 1128 MHz – EN50607
UB10: 1164 MHz – EN50607
UB11: 1256 MHz – EN50607
UB12: 1292 MHz – EN50607
UB13: 1328 MHz – EN50607
UB14: 1364 MHz – EN50607
UB15: 1458 MHz – EN50607
UB16: 1494 MHz – EN50607
UB17: 1530 MHz – EN50607
UB18: 1566 MHz – EN50607
UB19: 1602 MHz – EN50607
UB20: 1638 MHz – EN50607
UB21: 1716 MHz – EN50607
UB22: 1752 MHz – EN50607
UB23: 1788 MHz – EN50607
UB24: 1824 MHz – EN50607
UB25: 1860 MHz – EN50607
UB26: 1896 MHz – EN50607
UB27: 1932 MHz – EN50607
UB28: 1968 MHz – EN50607
UB29: 2004 MHz – EN50607
UB30: 2076 MHz – EN50607
UB31: 2112 MHz – EN50607
UB32: 2148 MHz – EN50607
⚙️ Technical Specifications
Product type: Unicable II dCSS LNB with Legacy output
Model: IDLU-32L410-BMR1L-1PN
Number of user bands: 32
Preconfiguration: 32 user bands
SCR/dCSS outputs: 3
Legacy outputs: 1
Total outputs: 4
Maximum system capacity: 32 Unicable tuners + 1 Legacy tuner
Unicable protocols: EN50494 and EN50607
Input frequency: 10.70–12.75 GHz
Output frequency: 950–2150 MHz
Noise figure: 0.1 dB typical
Specified basic gain: Up to 55 dB
Specified signal gain: 67 dB
Operating voltage: 11.5–19 V DC
Current consumption: 350 mA at 13.5 V with 32 active user bands
Mounting neck: 40 mm
Connections: 4 × F-type female
Weather protection: Extendable cover for the F-connectors
Operating temperature: −30 to +70°C
Product number: 11481
EAN: 5453002616741
📦 Package Contents
- 1 × Inverto Unicable II LNB IDLU-32L410-BMR1L-1PN
