PRODUCT DESCRIPTION
The CX320 X Large is the bigger and more powerful member of the CX320 range, designed for installations requiring extensive indoor mobile coverage. With ≥85 dB gain and four separate indoor antennas, the amplified signal can be distributed efficiently throughout several sections of a building.
It is particularly suitable for large warehouses, industrial facilities, workshops, supermarkets, retail stores, offices, healthcare facilities and large villas.

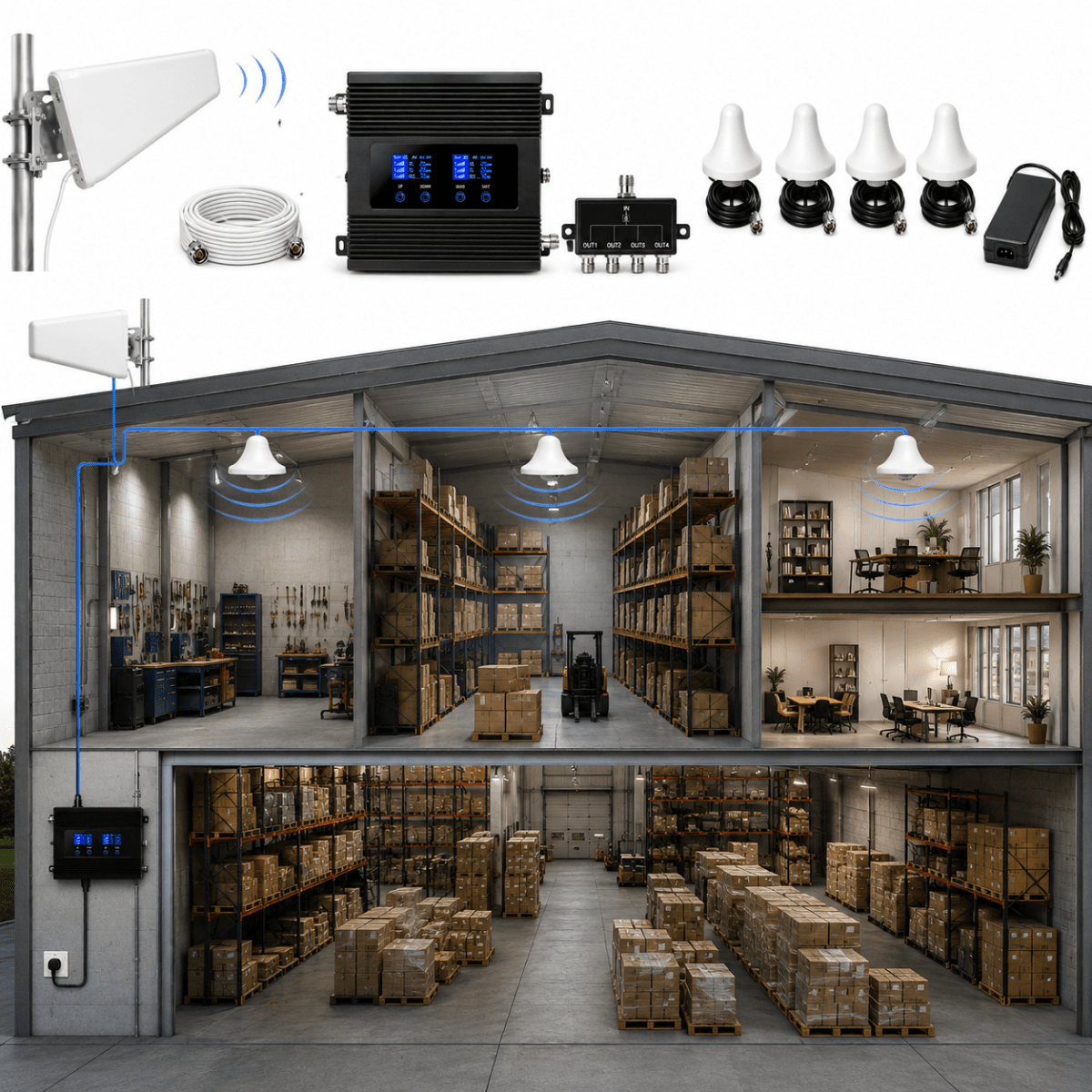

The outdoor antenna receives the available mobile signal and sends it to the CX320 X Large repeater. The amplified signal is then distributed through a 4-way splitter to four separate indoor antennas, allowing several areas or floors to receive improved mobile coverage.
━━━━━━━━━━━━━━━━━━━━
⭐ KEY BENEFITS
✔ Powerful ≥85 dB gain
✔ Up to approximately 5000 m² open-area coverage
✔ Four indoor antennas for wider signal distribution
✔ Improves reception for calls, SMS and mobile data
✔ Supports 5G/4G/3G/GSM depending on frequency configuration
✔ Suitable for large multi-room buildings
✔ Ideal for multi-floor installations
✔ Intelligent signal management
✔ Complete package with antennas, splitter and cables
✔ Designed for professional and larger installations
━━━━━━━━━━━━━━━━━━━━
📶 COVERAGE AREA
🏢 Open areas: up to approximately 5000 m²
🚪 Partial obstacles: up to approximately 2000 m²
🧱 Extensive obstacles: up to approximately 1500 m²
📡 Gain: ≥85 dB
Actual coverage depends on outdoor signal strength, distance from the base station, building construction, walls, floors and antenna positioning.
━━━━━━━━━━━━━━━━━━━━
🏢 IDEAL FOR
🏭 Warehouses & industrial buildings
🔧 Workshops & automotive facilities

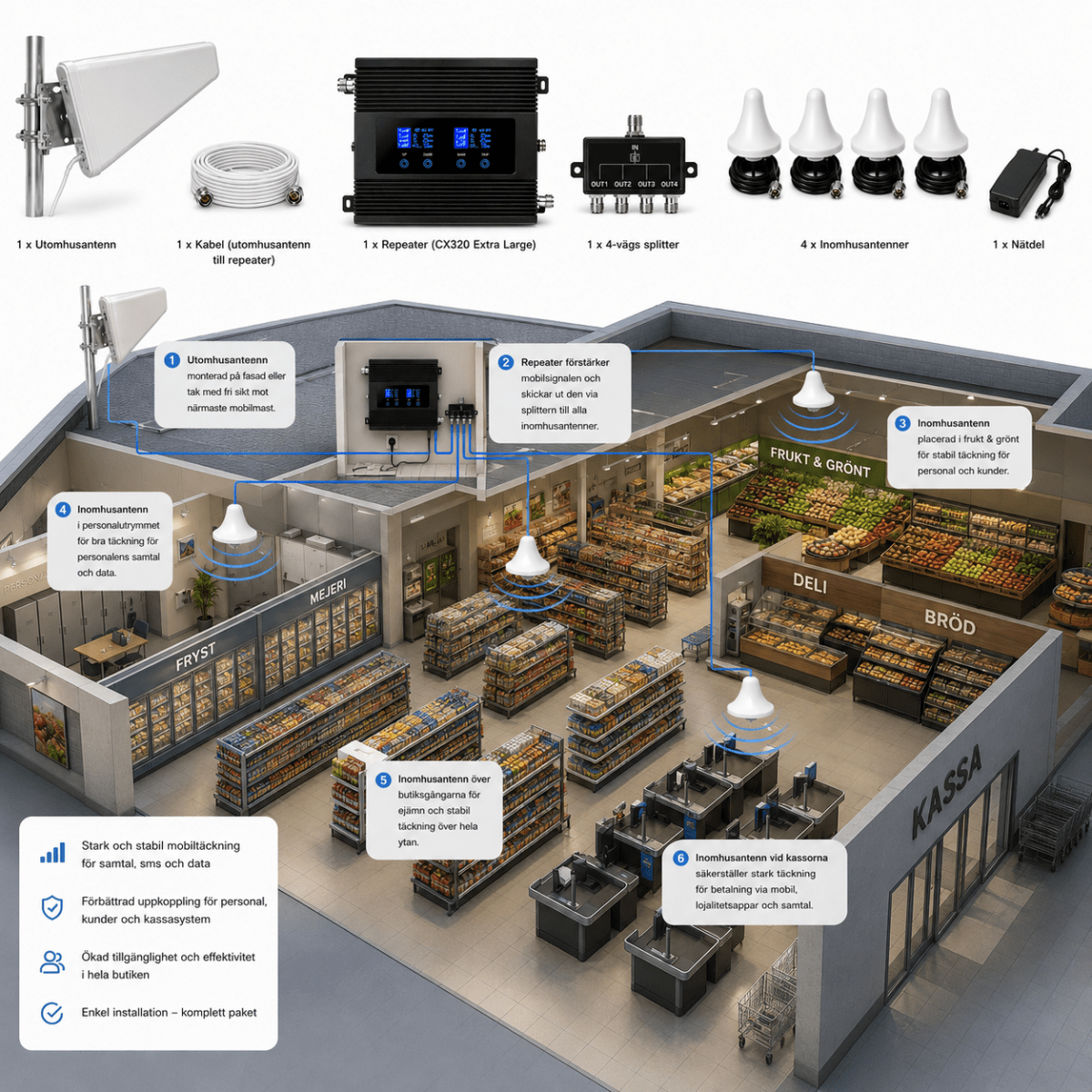

🛒 Supermarkets & large retail stores

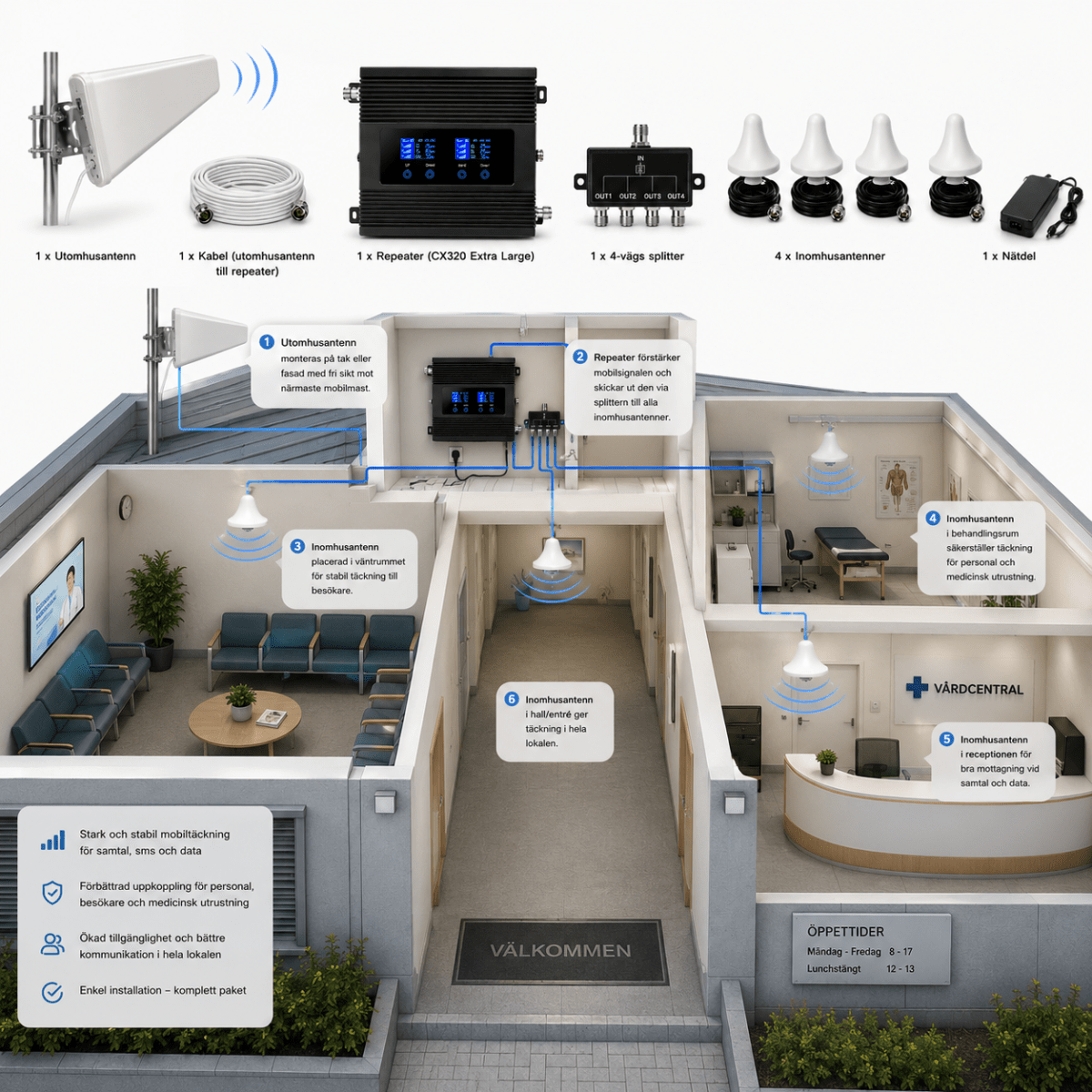

🏥 Healthcare facilities & clinics
🏢 Offices & commercial buildings

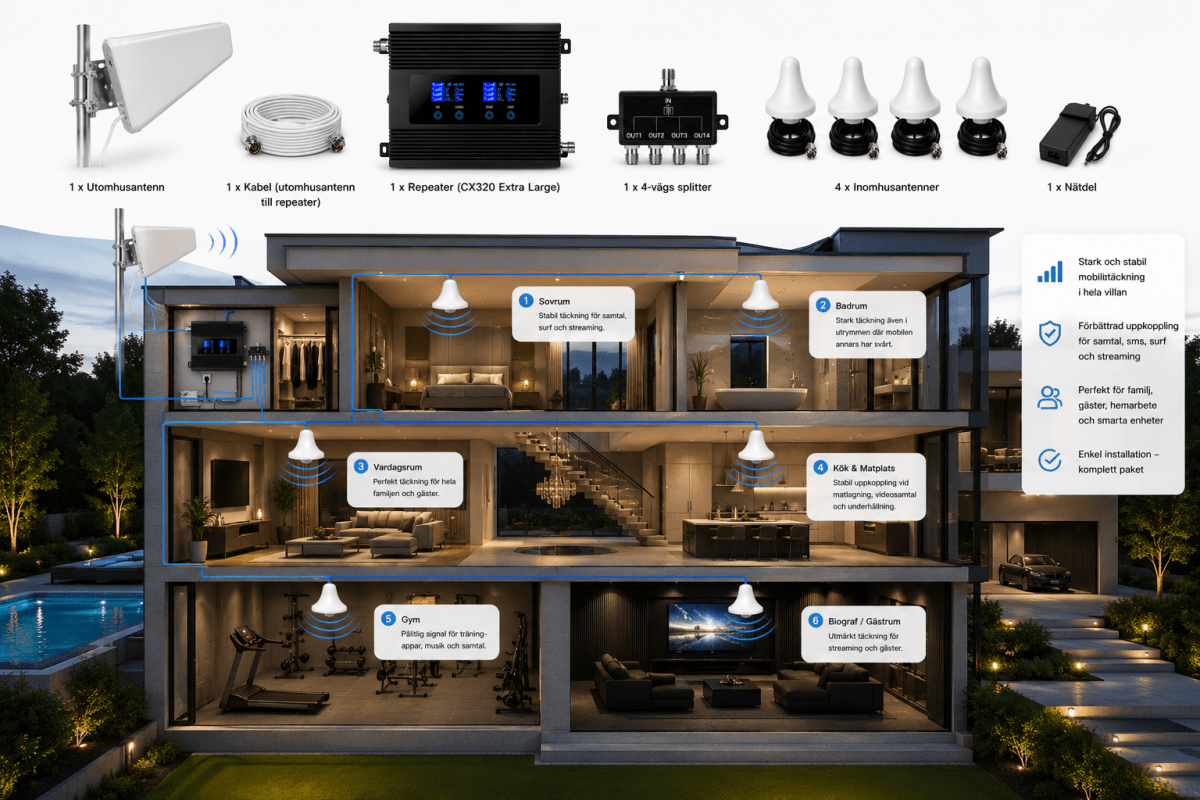

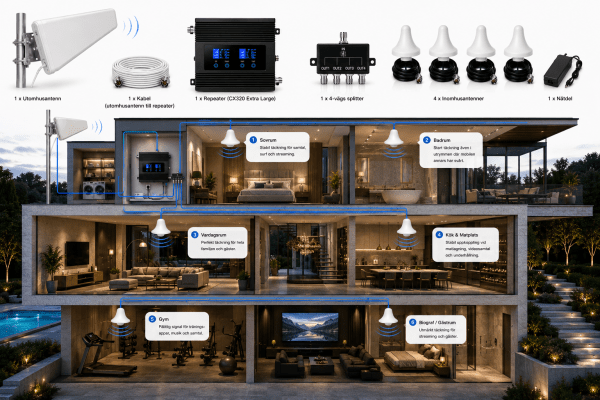

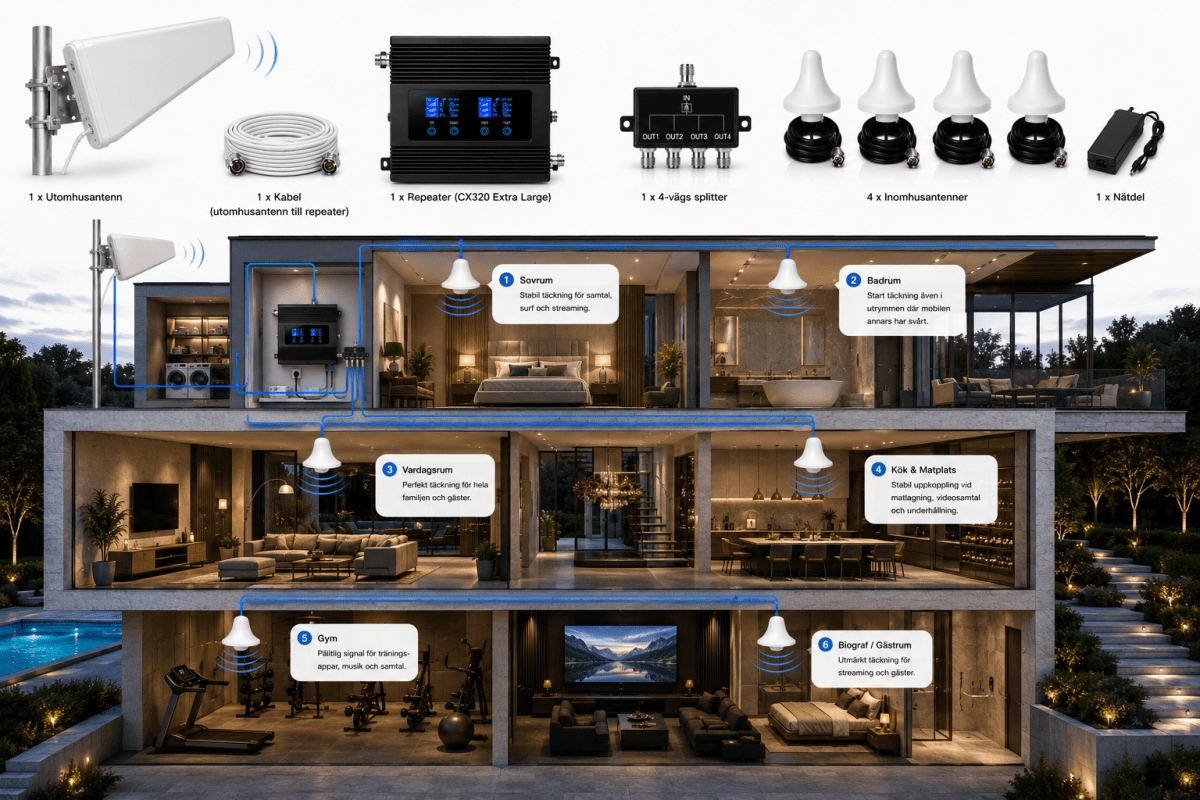

🏠 Large villas & multi-floor homes
━━━━━━━━━━━━━━━━━━━━
🔄 HOW THE SYSTEM WORKS
1. Outdoor antenna receives the available mobile signal.
2. Coaxial cable carries the signal to the CX320 X Large repeater.
3. CX320 X Large amplifies the mobile signal.
4. 4-way splitter distributes the amplified signal through four outputs.
5. Four separate cables connect the splitter to the indoor antennas.
6. Four indoor antennas distribute the improved signal throughout different areas of the building.
━━━━━━━━━━━━━━━━━━━━

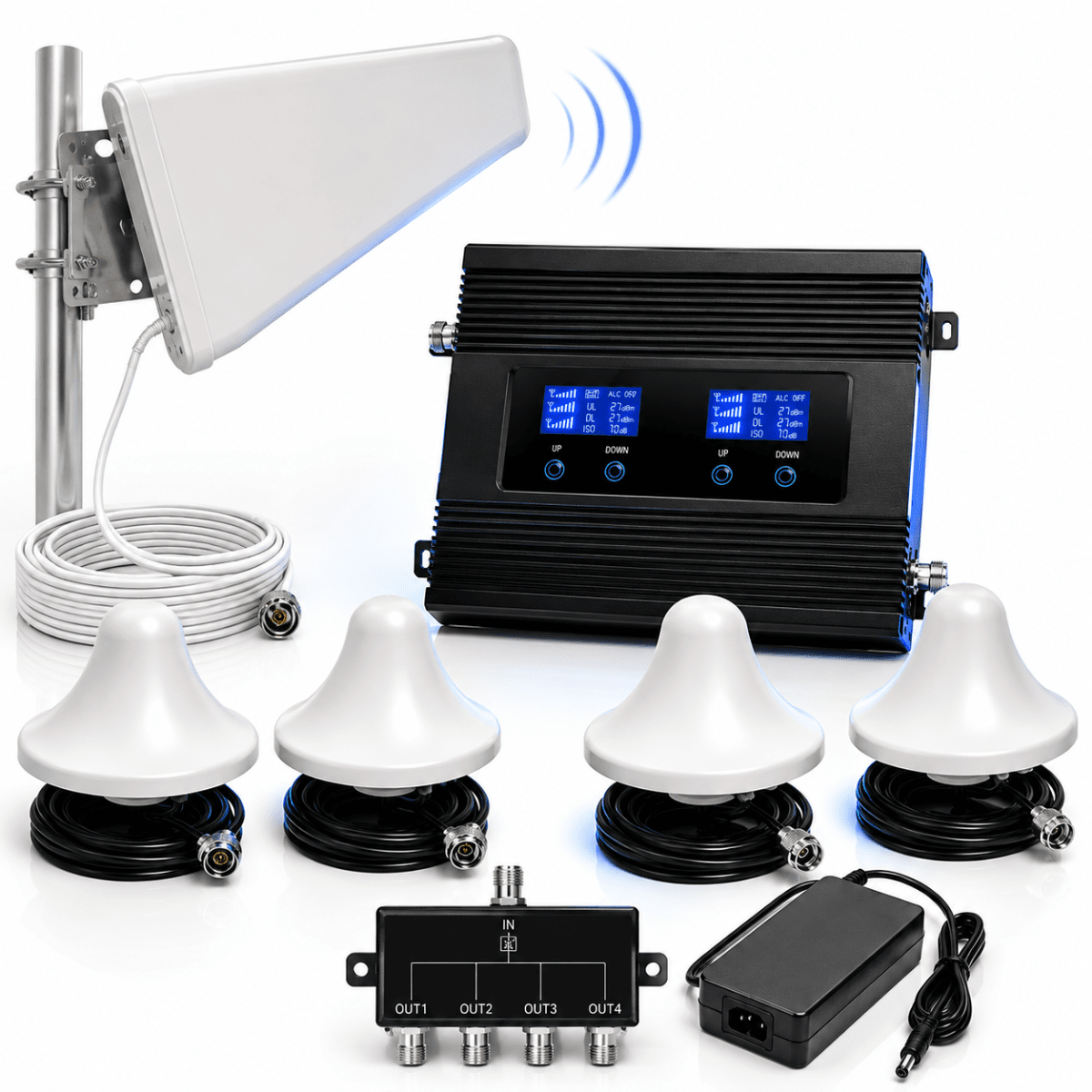

📦 PACKAGE CONTENTS
📡 1 × Outdoor antenna with mounting bracket
🔌 1 × Cable from outdoor antenna to repeater
⚡ 1 × CX320 X Large repeater
🔀 1 × 4-way splitter – 1 input / 4 outputs
🔌 4 × Cables from splitter to indoor antennas
📶 4 × Indoor antennas
🔋 1 × Power adapter
🔧 Mounting accessories
━━━━━━━━━━━━━━━━━━━━
⚙️ TECHNICAL SPECIFICATIONS
Model: CX320 X Large
Product type: Mobile signal repeater / signal booster
Networks: 5G / 4G / 3G / GSM depending on selected frequency configuration
Gain: ≥85 dB
Open-area coverage: Up to approx. 5000 m²
Partial-obstacle coverage: Up to approx. 2000 m²
Extensive-obstacle coverage: Up to approx. 1500 m²
Signal distribution: 4 indoor antennas
Splitter: 1 input / 4 outputs
Application: Large commercial and residential properties
━━━━━━━━━━━━━━━━━━━━
🛠️ INSTALLATION
For optimal performance, the outdoor antenna should be positioned where the strongest and most stable available mobile signal can be received.
The outdoor antenna connects to the CX320 X Large repeater. The amplified indoor signal is then connected to the 4-way splitter.
Each of the four splitter outputs connects via its own separate cable to one indoor antenna, allowing the antennas to be positioned strategically throughout four different coverage areas.
